51 71 447 Removing and installing or replacing trim panel for cover on left or right side member

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove FRONT WHEEL ARCH COVER (REAR SECTION) in working area
Remove LEFT UNDERBODY PANELLING
Remove TANK COVER in working area

NOTE: Graphic is similar.

Open doors.

Release expanding rivet (1).

Unclip trim panel for cover on side member (1) in direction of arrow and remove.

Installation note:

Make sure cover is correctly seated on side member (1).

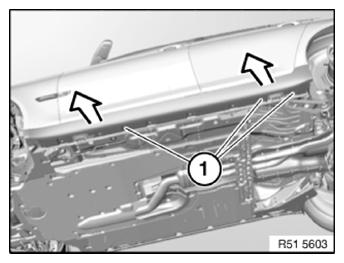

Fig 1: Pulling Trim Panel Cover On Side Member

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Protective film on rear door post for preventing paint abrasion between side frame and trim for cover on side member must not be missing or damaged.

(Sourcing reference BMW Parts Department)

Foil strip is slightly bent in area (1) and must not project over edge (2).

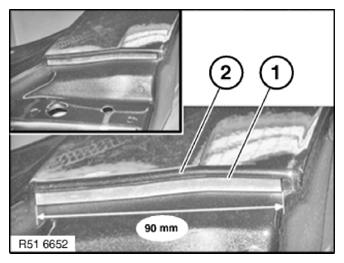

Fig 2: Identifying Foil Strip Slightly Bent Area Over Edge

Courtesy of BMW OF NORTH AMERICA, INC.
