51 21 235 Removing and installing/replacing Bowden cable for inside door opener on left or right front door
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove FRONT DOOR TRIM PANEL
NOTE:
Graphic is similar.

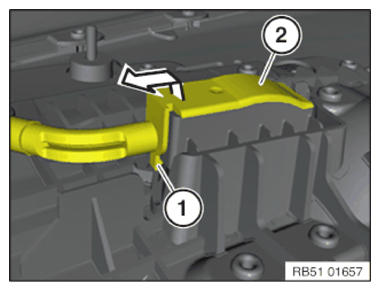

Lever out lock (1)
Pull off Bowden cable housing (2) towards rear/top - the Bowden cable feeds out of its own accord in the process.
Installation note:

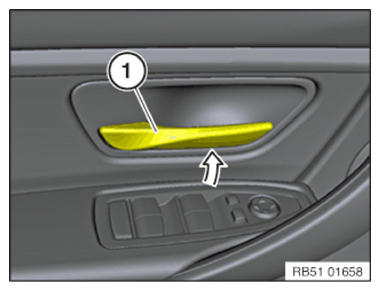

To install the Bowden cable, press inner door handle (1) in direction of arrow.
