51 21 140 Removing and installing/replacing complete lock barrel in left or right front door

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove CARRIER FOR OUTER DOOR HANDLE

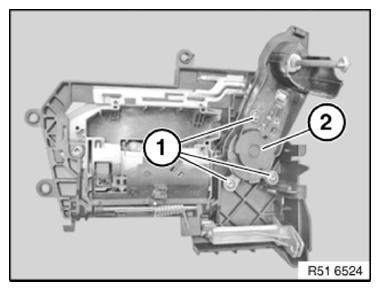

Release screws (1).

Remove gearing cover (2).

Fig 1: Identifying Screws And Gearing Cover

Courtesy of BMW OF NORTH AMERICA, INC.

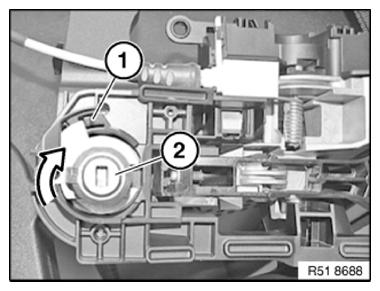

Press down latch mechanism (1) slightly.

Turn lock cylinder (2) in direction of latch mechanism (1) and remove.

Fig 2: Turning Lock Cylinder

Courtesy of BMW OF NORTH AMERICA, INC.
