51 47... Removing and refitting/replacing lock striker on privacy screen
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.
Necessary preliminary tasks:
- Remove OUTER PRIVACY SCREEN COVER

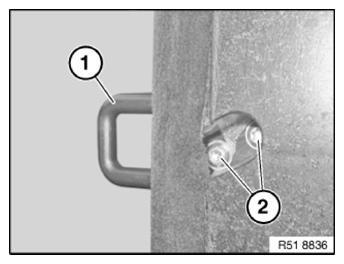

Unfasten screws (2).
Tightening torque 51 47 11AZ .
Maneuver out lock striker (1) sideways.
Installation:
Center lock striker (1) with the lock.
