51 47... Removing and installing/replacing left and right railing support
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove luggage compartment wheel arch panel. See RIGHT SIDE and LEFT SIDE .
- Remove PANEL FOR ROOF PILLAR at rear (D-pillar)

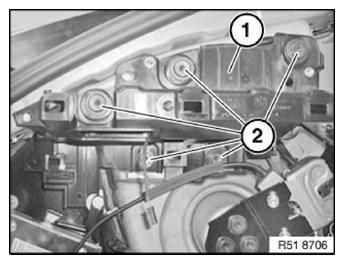

Release screws (2) on railing support (1).
Replace screws (2).
Tightening torque 51 47 6AZ .
