51 47... Removing and installing/replacing front luggage compartment floor trim panel

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Open rear lid.

Remove front luggage compartment floor trim panel (1) backward at an angle.

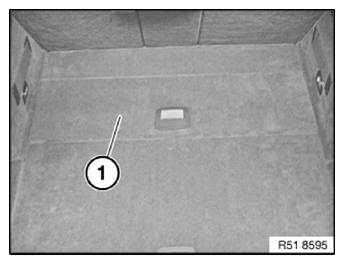

Fig 1: Identifying Front Luggage Compartment Floor Trim Panel
G09879617Courtesy of BMW OF NORTH AMERICA, INC.
