51 47 396 Remove rear right floor panel

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove SPARE WHEEL WELL PANEL AT REAR
POWER DISTRIBUTION BOX COVER ON RIGHT
Remove LUGGAGE COMPARTMENT TRIM PANEL COVER, right
Remove first aid kit

NOTE: The tail panel trim has been removed for greater clarity.

Release plastic nuts (2).

Release expanding rivet (3) from tail panel cover.

Release expanding rivets (1) from floor panel (4).

Remove floor panel (4).

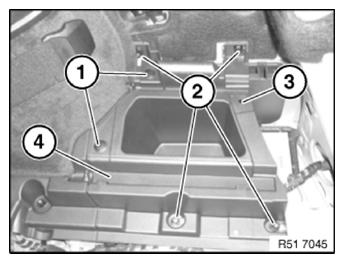

Fig 1: Identifying Plastic Nuts, Expanding Rivet And Floor Panel

Courtesy of BMW OF NORTH AMERICA, INC.
