51 47... Removing and installing/replacing luggage compartment panel end cover on left or right

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Left end cover:

Unclip end cover (1) at indicated locations and lift off.

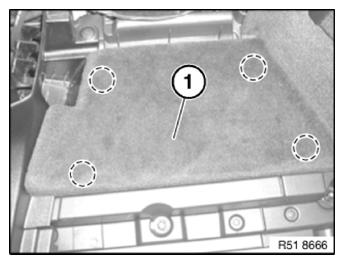

Fig 1: Identifying Cover
G09879631Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace faulty retainers (1).

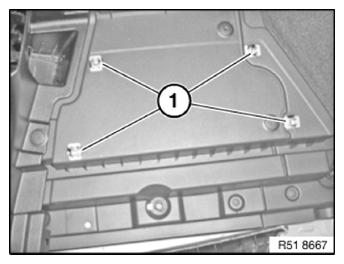

Fig 2: Identifying Retainers
G09879632Courtesy of BMW OF NORTH AMERICA, INC.

Right end cover:

Pull upward on end cover (2) at leather tab (1) and remove.

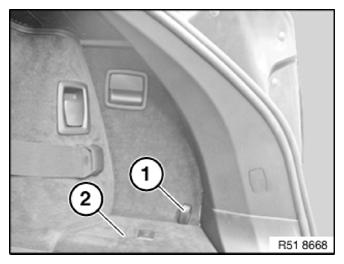

Fig 3: Identifying Leather Tab And End Cover
G09879633Courtesy of BMW OF NORTH AMERICA, INC.
