51 47 101 Removing and installing/replacing luggage compartment floor trim panel
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:

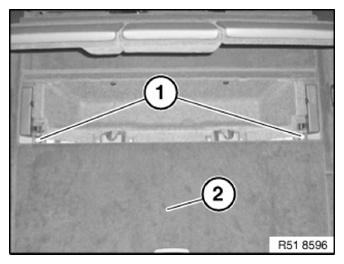

Unscrew nuts (1).
Tightening torque 51 47 2AZ .
Installation:
Check fit of luggage compartment floor trim panel (2) prior to tightening nuts.
Remove luggage compartment floor trim panel (2).
