36 11 123 Removing and installing/replacing an RDC trigger transmitter (rear)
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks
- Remove right WHEEL ARCH TRIM
Left side
Disconnect plug connection (1).
Release plastic nuts (2).
Remove RDC transmitter (3).

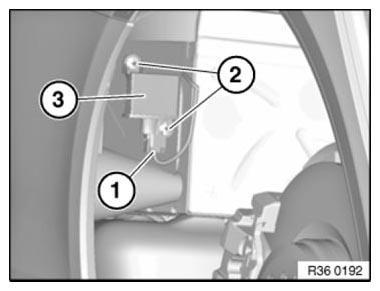

Right side
Disconnect plug connection (1).
Release expander rivets (2).
Remove RDC transmitter (3).
