12 51 302 Removing and installing/replacing engine wiring harness section, sensor system module cylinder 1-4 (N63 B40/44 O 1)
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION)
.
IMPORTANT:
Screw back on all screw points of cable channels without fail
! Some screw points are also ground points
. If the wiring harnesses are not correctly screwed tight and secured, this may cause DME malfunction and failure!
Necessary preliminary tasks:
- Read out the fault memory of the DME control unit.
- Switch off ignition.
- Remove right INTAKE PLENUM .

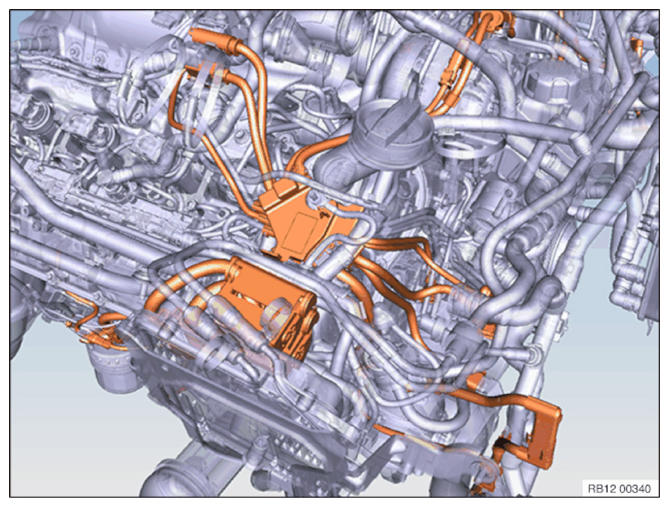

Overview of wiring harness section, sensor system module cylinder 1-4.
Slacken nut (1).
Tightening torque 12 51 2AZ .
Remove ground cable.
IMPORTANT:
If the nut (1) is released, the ground pin (double pin) underneath must
be retightened!
Retighten ground pin.
Tightening torque 12 51 3AZ
Retighten ground pin.
Tightening torque 12 51 3AZ
| Unlock and disconnect following connectors and lines | |
|---|---|
| Unlock connector on crankshaft sensor and disconnect | |
| Unlock connector on oil pressure sensor and disconnect | |
| Unlock plug on right inlet camshaft pulse generator and disconnect | |
| Unlock plug on right exhaust camshaft pulse generator and disconnect | |
| Unlock connector on starter motor and disconnect | |
| Unlock connector on oil level sensor and disconnect | |
| Unlock connector on left and right hot film air mass meter and remove | |
| Unlock connector on right high pressure pump and pull off | |
| Unlock connector on right control sensor and pull off | |
| Unlock connector of right monitoring sensor and pull off | |
| Unlock connector on right high-pressure fuel sensor and pull off | |
| Unlock connector on right intake air pressure sensor and pull off | |
| Unlock connector on air conditioning compressor and disconnect | |
| Unlock connector on right knock sensors and pull off | |
| Unlock connector on right charging pressure sensor and pull off | |
| Unlock plug on coolant temperature sensor to coolant pump and disconnect | |
| Unlock connector on coolant thermostat and disconnect | |
| Unlock plug on pressure transducers and disconnect | |
| Unlock plug on left and right throttle valve assemblies and disconnect | |
| Unlock connector on solenoid valves camshaft adjustment, right and pull off | |
| Unlock plug on turbocharger coolant pump and disconnect | |
| Unlock connector on alternator and disconnect | |
| Unlock plug on coolant pump for charge air cooler and disconnect | |
Release wiring harness if necessary from existing clips and clamps.
Feed out wiring harness and remove.
Installation note:
Check wiring harness installation arrangement.
Check plug connections for correct fit.
Check stored fault message.
Clear diagnostic fault entries from fault memory.
