12 14 600 Removing/replacing knock sensors (N55)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Read out the fault memory of the DME control unit.
Switch off ignition.
Remove INTAKE PLENUM .
Vehicles with the Bosch high pressure pump only:
Remove HIGH PRESSURE PUMP .

Unlock connector (1) and remove.

Feed out and remove the connector (1) behind the feed line.

Fig 1: Identifying Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws on both knock sensors (1) and remove knock sensors (1).

Tightening torque 13 62 3AZ .

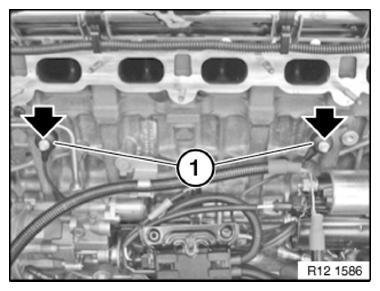

Fig 2: Locating Knock Sensors

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Clean contact surface of knock sensors on engine block.

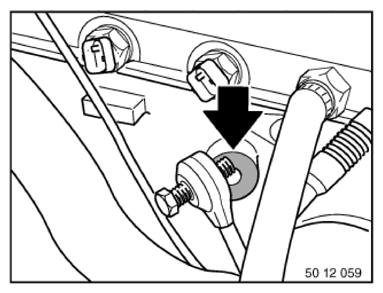

Fig 3: Locating Contact Surface Of Knock Sensors On Engine Block

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Reassemble the vehicle.
Check stored error/fault messages.
Clear diagnostic fault entries from fault memory.
