13 51 017 Removing and installing/replacing high pressure pump (Bosch) (N55)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Observe warning on cylinder head cover.
Disconnect NEGATIVE BATTERY TERMINAL (risk of fire due to short-circuiting on dismantling).
Electric fuel pump starts up automatically when door is opened!
Carry out installation work on fuel system only with coolant temperature below 40 °C.

IMPORTANT: Wear full face guard and protective gloves.
Fuel can emerge spontaneously at high speed when the high pressure line is released!

IMPORTANT: Adhere to conditions of absolute cleanliness when working on the high-pressure fuel system.
Introduced contaminants can cause malfunctions in the system!

Do not allow any dirt particles or foreign bodies to get into the system.
Remove all traces of dirt before removing lines or separate components.
Use only fluff-free cloths.
Seal all fuel system openings with protective caps or plugs.

IMPORTANT: Ignition coils must not be contaminated by fuel.
The resistance of the silicone material is reduced significantly by contact with fuel, which may cause the ignition coil to fail!
Cover ignition coil with suitable means.

Necessary preliminary tasks :

Remove FEED LINE .
Remove PRESSURE LINE .

Recycling

Fuel escapes when fuel lines are detached.

Catch and dispose of escaping fuel.

Observe country-specific waste disposal regulations.

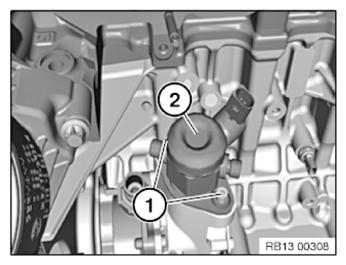

Release screws (1).

Remove high pressure pump (2).

When removing the high pressure pump, ensure that the pump tappet does not fall out.

Installation note:

Before installing the high pressure pump, the cam of the high pressure pump drive must be turned to BDC. To do this, twist the engine if necessary in the direction of engine rotation to the central bolt of the crankshaft.

Adhere to tightening/torque sequence.

Fig 1: Identifying High Pressure Pump And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

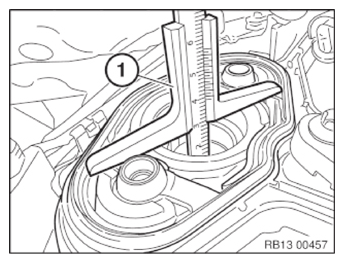

Lay depth gauge (1) flat on high pressure pump flange.

Turn engine at central bolt in direction of engine rotation until the depth gauge shows that the camshaft has reached the BDC position .

Fig 2: Identifying Depth Gauge

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

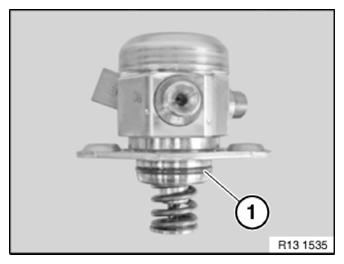

Replace O-ring (1) and coat with engine oil.

Clean contact surfaces.

Fig 3: Identifying O-Ring

Courtesy of BMW OF NORTH AMERICA, INC.

Install high pressure pump (2).

Installation note:

Provisionally fasten screws (1) on high pressure pump (2) and tighten alternately in 90° increments until final tightening, otherwise the piston may break as a result of tilting!

Tightening torque 13 53 1AZ

Attach connector.

Fig 4: Identifying High Pressure Pump And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.

Check fuel system for tightness.

Check function of DME.
