12 14 521 Replacing crankshaft pulse sensor (N55)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Necessary preliminary tasks:

Read out the fault memory of the DME control unit.
Switch off ignition.
Remove STARTER MOTOR .

Unlock connector (1) and remove.

Release screw (2).

Tightening torque 13 62 2AZ .

Remove connector housing from crankcase.

Release screw (3).

Tightening torque 13 62 8AZ .

Pull pulse sensor from crankcase and remove.

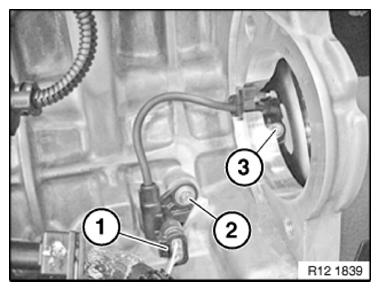

Fig 1: Identifying Connector And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

During installation of pulse sensor make sure that guide pin (1) of pulse sensor is inserted in guiding groove (2) of crankcase.

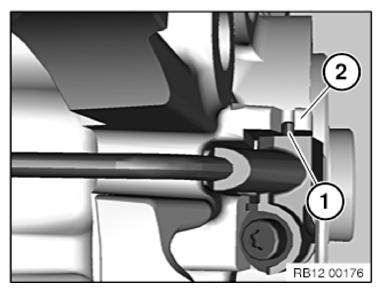

Fig 2: Identifying Guide Pin Of Pulse Sensor And Groove

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Assemble engine.
Check stored fault message.
Delete fault memory.
