12 41 020 Removing and installing/replacing starter motor (N55)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Switch off ignition.
Disconnect BATTERY NEGATIVE LEAD .
Remove INTAKE PLENUM .

Unlock connector (1) and remove.

Release nuts (2) and disconnect positive battery cables.

Tightening torque 12 42 2AZ .

Release screws (3).

Installation note:

Tightening torque 12 41 1AZ .

Remove starter motor (4).

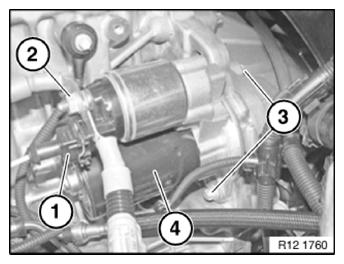

Fig 1: Identifying Connector, Nuts, Screws And Starter Motor

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Check starter pinion and ring gear for damage. Replace starter motor if necessary.

Only during starter replacement and on vehicles with MSA (automatic engine start-stop function)

Use BMW diagnosis system to reset the starter counter.
