64 22 137 Removing and installing or replacing left fresh-air grille

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove DECORATIVE STRIP ON INSTRUMENT PANEL ON LEFT

NOTE: Example graphic on the F01.

Release screws (1).

Pull out left fresh-air grille (2) towards front and unlock and disconnect plug connection behind.

Remove left fresh-air grille (2).

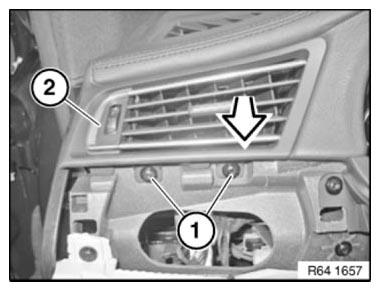

Fig 1: Removing Left Fresh-Air Grille

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Catches (1) of fresh-air grille (2) must not be damaged.

Make sure fresh-air grille (2) is correctly seated on fresh-air duct behind.

Fig 2: Identifying Catches Of Fresh-Air Grille

Courtesy of BMW OF NORTH AMERICA, INC.
