64 11... Replacing rear passenger compartment A/C control panel fan motor

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work

Remove REAR PASSENGER COMPARTMENT A/C CONTROL PANEL

Release screws (1).

Remove fan motor (3) from A/C control panel (2).

Installation note:

Make sure pins (4) are correctly seated on fan motor (3).

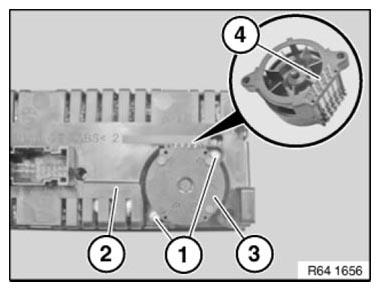

Fig 1: Identifying Fan Motor, A/C Control Panel, Pins And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
