64 11 395 Removing and installing/replacing control panel for rear cabin air conditioning

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove REAR CENTER CONSOLE TRIM

Following operations relate exclusively to replacement.

NOTE: Example graphic on the F01.

Unlock latch mechanisms (1).

Press out control panel of rear passenger compartment A/C system (3) downwards and remove from center console cover.

Installation note:

Catches (1) and (2) must be felt to snap into corresponding guides.

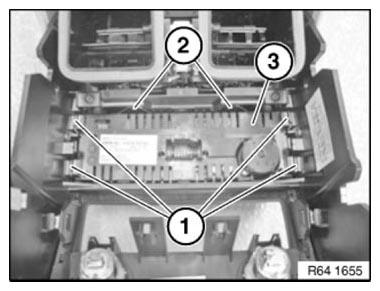

Fig 1: Identifying Rear Passenger Compartment A/C System And Latch Mechanisms

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

Remount FAN MOTOR
Carry out VEHICLE PROGRAMMING AND ENCODING
