64 11 906 Removing and installing/renewing ventilation temperature sensor (center fresh air grille)
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks
- Remove CAR INFOTAINMENT COMPUTER

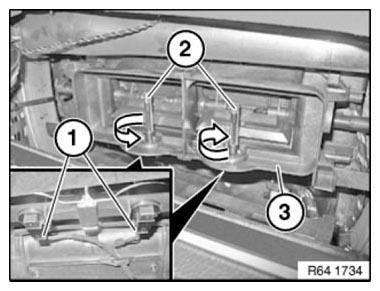

Disconnect plug connection (1).
Turn temperature sensor (2) on plug socket in direction of arrow up to limit position.
Remove temperature sensor (2) from center fresh air grille (3).
Installation note:
Pay attention to lead sequence.
Make sure temperature sensor (2) is correctly engaged in middle fresh air grille (3).
