64 11 225 Replacing controller for heating and A/C system blower
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks
- Remove blower housing for heating and air-conditioning unit . See 64 11 545 REMOVING AND INSTALLING BLOWER HOUSING FOR HEATING AND AIR-CONDITIONING UNIT or 64 11 545 REMOVING AND INSTALLING FAN HOUSING FOR HEATER/AIR CONDITIONER (N52T, N55) .

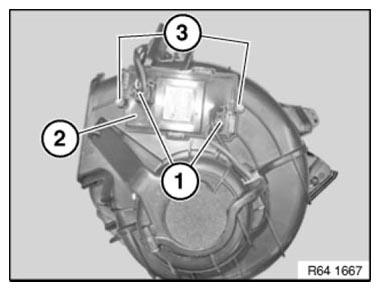

Unlock plug connections (1) and disconnect.
Release screws (3).
Remove controller (2) towards top.
