64 11 213 Removing and installing/replacing heater/air conditioner fan

Necessary preliminary tasks

• Remove blower housing  . See 64 11 545 REMOVING AND INSTALLING BLOWER HOUSING FOR HEATING AND AIR-CONDITIONING UNIT  or 64 11 545 REMOVING AND INSTALLING FAN HOUSING FOR HEATER/AIR CONDITIONER (N52T, N55) .

Unlock plug connections (2) and (3) and disconnect.

Make sure motor supply lead is correctly laid in cable lead-through (2).

Detach fan housing upper section from fan housing lower section.

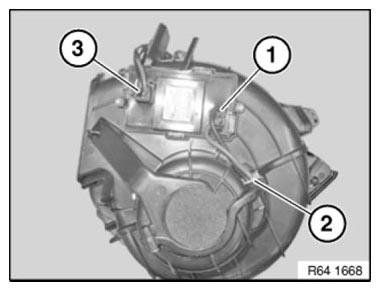

Fig 1: Identifying Blower Housing Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on fan housing (2).

Release fan housing upper section from lower section.

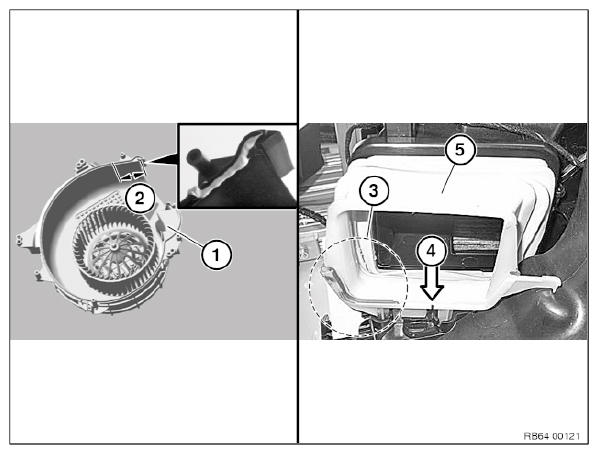

Fig 2: Identifying Screws On Fan Housing

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on fan housing lower section (2).

Release retaining clip (3).

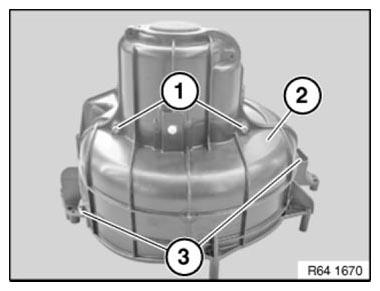

Fig 3: Identifying Retaining Clip And Fan Housing Lower Section Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Remove intermediate cover (1) from blower housing lower section (2).

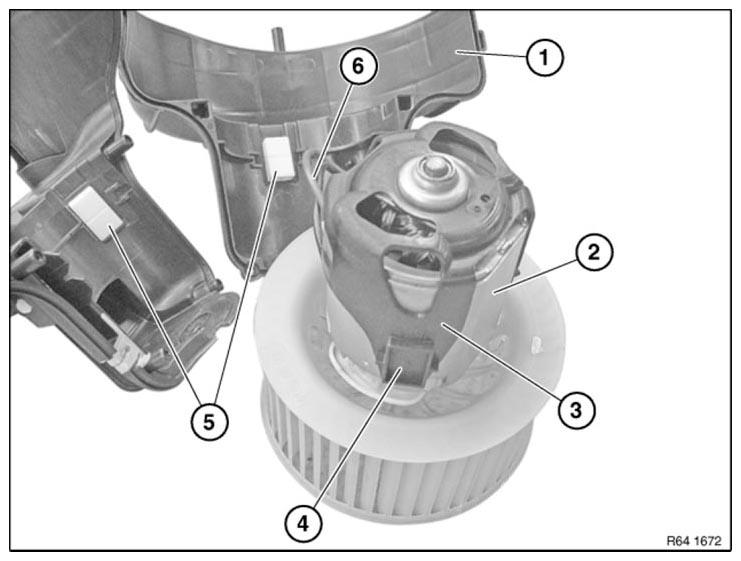

Fig 4: Identifying Intermediate Cover From Blower Housing Lower Section

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 5: Identifying Fan Motor Holder, Blower Housing Lower Section And Blower Motor

Courtesy of BMW OF NORTH AMERICA, INC.

Take blower housing lower section (1) apart as pictured and remove blower motor (2).

Installation note:

Fan motor holder (3) must be seated as pictured on fan motor (2).

Fan motor holder (2) must be correctly seated with guides (4) in guide buffers (5).

Make sure fan motor supply lead (6) are correctly laid.

Installation note:

Only on vehicles up to production dates from 09/2009 to 09/2010:

On the lower section of fan housing (1) and  on gaiter (5), fill in the groove in labelled areas (2) and  (3) with sealant (BMW Parts

Department 8342 0 428 349). Remove excess sealant with brush from groove.
