64 12 681 Replacing temperature sensor for left or right electric auxiliary heating - rear passenger compartment

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work

NOTE: Picture for example purposes.

Unlock temperature sensor (1) by turning and remove.

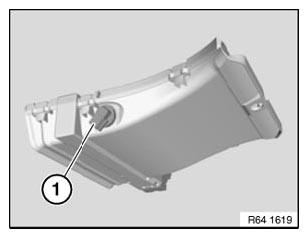

Fig 1: Identifying Rear Passenger Compartment Electric Auxiliary Heating Temperature Sensor
G06213757Courtesy of BMW OF NORTH AMERICA, INC.
