64 12 673 Replacing left or right electric auxiliary heater - rear cabin

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove driver's seat or passenger seat . See 52 14 001 REMOVING AND INSTALLING FRONT SEAT, DRIVER'S SIDE or 52 14 002 REMOVING AND INSTALLING FRONT SEAT, FRONT PASSENGER SIDE .

Release screws (1).

Remove cover (2).

Fold carpet (3) to one side.

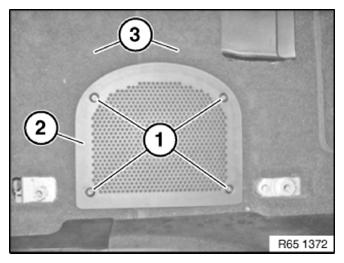

Fig 1: Identifying Carpet Cover With Screws

G09881584

Courtesy of BMW OF NORTH AMERICA, INC.

Release plastic nuts (1).

Installation:

Ensure that air duct (2) is correctly seated.

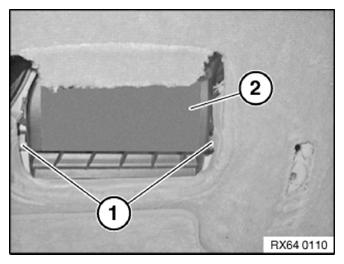

Fig 2: Identifying Air Duct Nuts

G09881585

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and disconnect plug connections (1) on electric auxiliary heater (2).

Unlock and disconnect plug connection (3) on temperature sensor.

Completely feed out air duct (4).

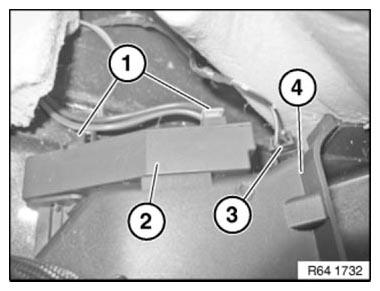

Fig 3: Identifying Electric Auxiliary Heater, Air Duct And Plug Connection

G06886280

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Remove TEMPERATURE SENSOR FOR ELECTRIC AUXILIARY HEATER .
