64 12 577 Replacing changeover valve for independent/auxiliary heating
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Risk of scalding!
Only perform the following repair work on an engine that has cooled down.
Follow notes for repair work on cooling system . See 17 00 039 VENTING AND FILLING COOLING SYSTEM WITH VACUUM FILLING UNIT ; 17 00 039 BLEED COOLING SYSTEM AND CHECK FOR WATERTIGHTNESS (N52T, N53, N55) or 17 00 039 BLEEDING COOLING SYSTEM AND CHECKING FOR WATERTIGHTNESS (N63 B44 O 0) .
Only perform the following repair work on an engine that has cooled down.
Follow notes for repair work on cooling system . See 17 00 039 VENTING AND FILLING COOLING SYSTEM WITH VACUUM FILLING UNIT ; 17 00 039 BLEED COOLING SYSTEM AND CHECK FOR WATERTIGHTNESS (N52T, N53, N55) or 17 00 039 BLEEDING COOLING SYSTEM AND CHECKING FOR WATERTIGHTNESS (N63 B44 O 0) .
Necessary preliminary work
IMPORTANT:
Risk of damage!
Observe marked coolant flow direction.
Observe marked coolant flow direction.
NOTE:
Mark position of coolant hoses prior to dismantling.

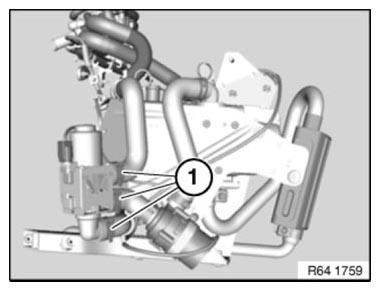

Release spring clamps (1) and detach coolant hoses.

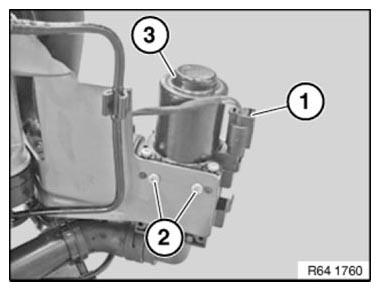

Unfasten plug connection (1) and disconnect.
Unfasten screws (2).
Remove changeover valve for independent/auxiliary heating (3).
After installation
