17 13 030 Removing and installing/replacing coolant filler neck (N63 B40/B44 O 0/1)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Drain COOLANT .
Remove ACOUSTIC INSULATION for bulkhead on left
Remove front left WHEEL ARCH COVER

Release screws (1).

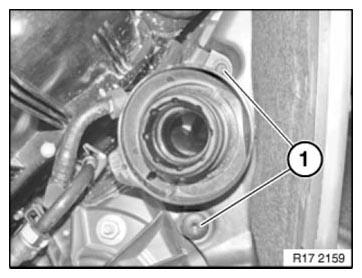

Fig 1: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and detach coolant hoses (1) on coolant filler neck.

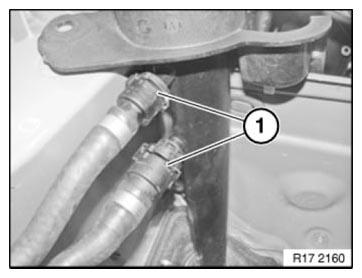

Fig 2: Identifying Coolant Hoses

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and detach coolant hoses (1) on coolant filler neck.

Weave out and remove coolant filler neck.

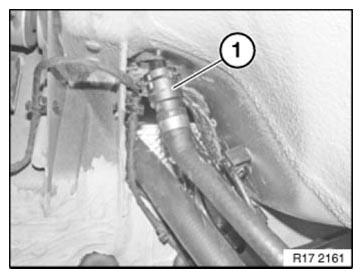

Fig 3: Identifying Coolant Hose

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.

Top up COOLANT .

Visual inspection of cooling system for tightness.
