17 11 150 Removing and installing/replacing additional water cooler (N55)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove FRONT SECTION OF WHEEL ARCH COVER on left.

WARNING: Risk of scalding!
Only perform this repair work after engine has cooled down.

IMPORTANT: Wear safety goggles and protective gloves.

Recycling

Coolant emerges when coolant lines are detached. Catch and dispose of escaping coolant in a suitable container.

Observe country-specific waste disposal regulations.

Detach coolant lines (1).

Catch and dispose of escaping coolant.

Release screw (2).

Tightening torque 17 10 8AZ .

Removing auxiliary coolant cooler (3).

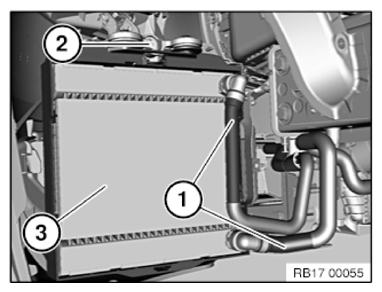

Fig 1: Identifying Auxiliary Coolant Cooler, Coolant Lines And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Check coolant hoses for damage.

NOTE: After completion of repair work, check coolant level.
If necessary, ADD COOLANT .
Reassemble the vehicle.
