17 11 100 Removing and installing/replacing the coolant expansion tank (N63 B40/44 O 1)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Drain COOLANT .
Remove WHEEL ARCH COVER (REAR SECTION) front left

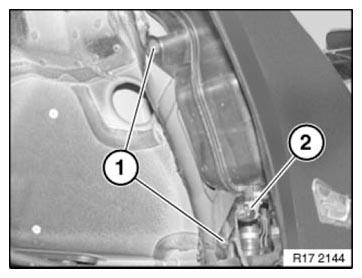

Release screws (1).

Tightening torque 17 10 2AZ .

Unlock connector (1) on coolant level switch and disconnect.

Fig 1: Identifying Connector On Coolant Level Switch And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

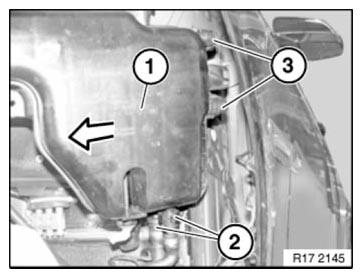

Pull expansion tank (1) forward.

Release and disconnect coolant hoses (2).

Release and disconnect coolant hoses (3).

Feed out expansion tank (1) toward the front and remove.

Fig 2: Removing Expansion Tank

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.

Top up COOLANT .

Check cooling system for LEAKS .
