61 31 539 Replacing operating element for driver assistance system

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove OPERATING ELEMENT FOR ASSIST SYSTEM

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .

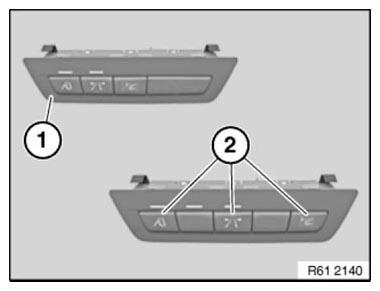

The function keys (2) on the replacement may differ from those on the originally installed operating element (1).

Fig 1: Identifying Function Keys On Operating Element

Courtesy of BMW OF NORTH AMERICA, INC.

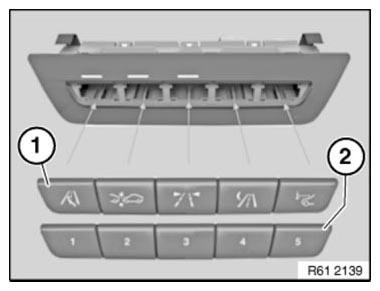

Picture shows function key (1) for full equipment specification.

Assign function keys (1) according to respective equipment specification.

Blind caps (2) are marked on the back with the corresponding position numbers.

Fig 2: Identifying Function Keys And Blind Caps

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: The function keys (1) and blind caps (2) must be clipped onto the correct positions otherwise correct operation is not guaranteed and the operating element may be damaged.

Carry out VEHICLE PROGRAMMING/ENCODING .
