61 31 041 Removing and installing operating element for assist system
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
IMPORTANT:
Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .
Necessary preliminary tasks:

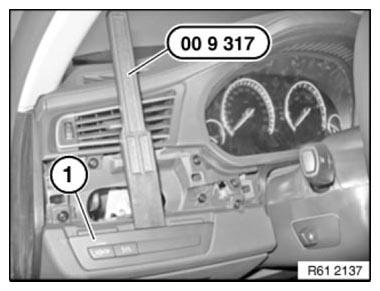

Carefully lever driver assist system (1) out with special tool 00 9 317 .
Disconnect plug connection behind and remove driver assistance system (1).
Installation note:
Make sure driver assistance system (1) is correctly seated.
