61 31 203 Replacing operating unit for seat adjustment (version 1)
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove OUTER COVER on front seat.

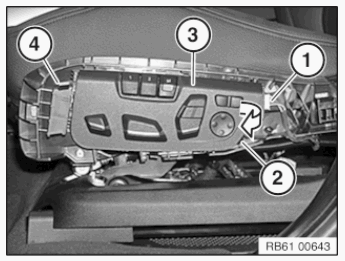

Unfasten plug connection (1) and disconnect.
Unfasten catch (2) and switch cluster (3) out of holder (4) in direction of arrow.
Installation note:
Latch mechanism (2) must not be damaged or missing.
Make sure switch cluster (3) is seated correctly in holder (4).
