61 67 200 Removing and installing/replacing washer jet for Night Vision camera
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove MIDDLE LEFT RADIATOR GRILLE .

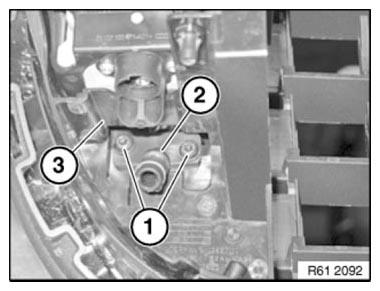

Release screws (1).
Remove high-pressure nozzle (2) from Night Vision camera (3).
Installation note:
New washer jet is already preset.
Run a function check.
