51 13 001 Removing and installing/replacing front radiator grille, middle left or right

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove ENGINE COMPARTMENT LID SEAL in working area

Version with night vision

Release camera fixing screw (1) and remove.

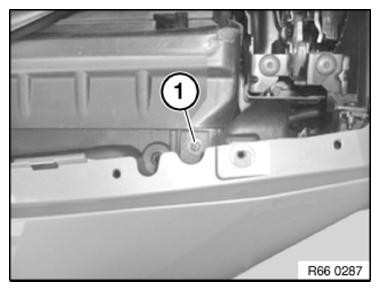

Fig 1: Identifying Camera Fixing Screw

G09879011

Courtesy of BMW OF NORTH AMERICA, INC.

Press middle front radiator grille (1) upwards and pull in direction of arrow towards front.

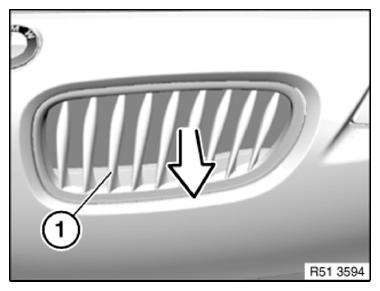

Fig 2: Removing Middle Front Radiator Grille

G09879012

Courtesy of BMW OF NORTH AMERICA, INC.

Version with night vision

Release plug connection (2) and high-pressure nozzle line (3) on night vision camera (1) and disconnect.

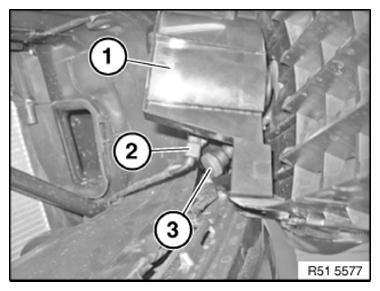

Fig 3: Identifying Plug Connection, Pressure Nozzle Line And Night Vision Camera

G09879013

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

All catches and guides on middle front radiator grille must not be damaged.

Press on chrome ring to push front radiator grille (2) into bumper trim.

Fixtures (1) must engage correctly.

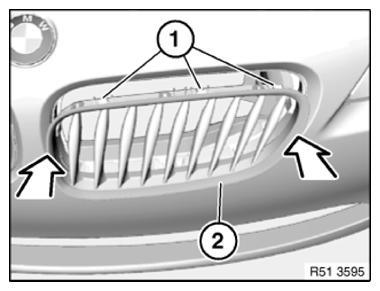

Fig 4: Pushing Front Radiator Grille Into Bumper Trim

G09879014

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

If necessary, remove NIGHT VISION CAMERA .
