61 35 980 Removing and installing/renewing aerial for comfort access system on left or right
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove TRIM PANEL FOR COVER ON SIDE MEMBER .

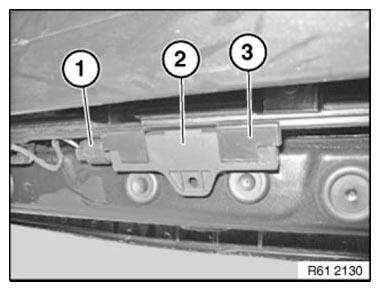

Disconnect plug connection (1).
Unlock and remove aerial for comfort access system (2) from bracket (3).
Installation note:
Make sure interior aerial for comfort access system (2) is correctly seated in designated holder (3).
