61 35 953 Removing and installing/replacing interior aerial/antenna for comfort access system (front center console)
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove FRONT STORAGE COMPARTMENT .

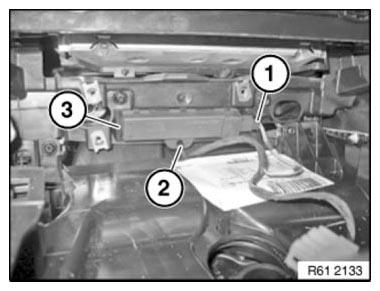

Disconnect plug connection (1).
Unlock and remove interior aerial for comfort access system (2) from holder (3).
Installation:
Make sure interior aerial for comfort access system (2) is correctly seated in designated holder (3).
