61 35 115 Removing and installing/replacing footwell module

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .

Necessary preliminary tasks:

Disconnect BATTERY NEGATIVE CABLE .
Remove FOOTWELL SIDE TRIM PANEL ON A-PILLAR, LEFT .

Disconnect connector connections (1) and (3).

Release nuts (2) and remove footwell module (4).

Tightening torque 61 35 4AZ

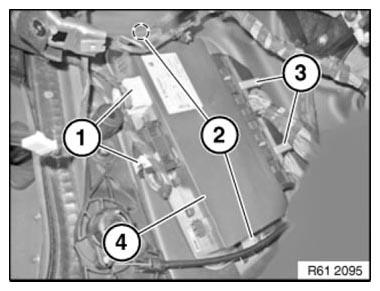

Fig 1: Identifying Footwell Module With Connector Connections And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out VEHICLE PROGRAMMING/ENCODING .
