61 21 010 Remove and install or replace battery

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Observe SAFETY INFORMATIONS for handling vehicle battery.

To ensure the correct safety and convenience functions, install only the original battery (battery size and type) stored in the vehicle order. OBSERVE NOTE ON BATTERY REPLACEMENT .

Necessary preliminary tasks:

Remove POWER DISTRIBUTION BOX

Slacken nut (1).

Tightening torque 61 21 1AZ .

Detach vent hose from battery.

IMPORTANT: Do not under any circumstances pull/lever safety battery terminal off by force.

Detach safety battery terminal (2) towards top, lay to one side and secure.

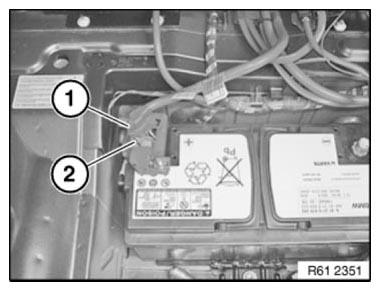

Fig 1: Identifying Battery Terminal Nut

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE:

Always route degassing line (1) at a downhill gradient outwards to prevent any siphoning action!
Image A depicts an incorrect installation, figure B depicts a correct installation.

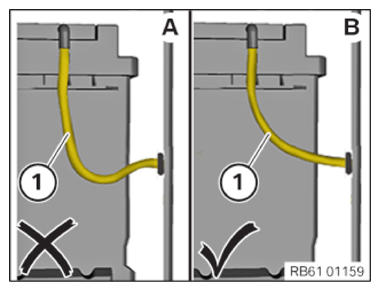

Fig 2: Identifying Battery Degassing Line

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1) and remove holder (2).

Tightening torque 61 21 5AZ .

Pull out battery.

Installation note:

Make sure battery is correctly seated in mounting.

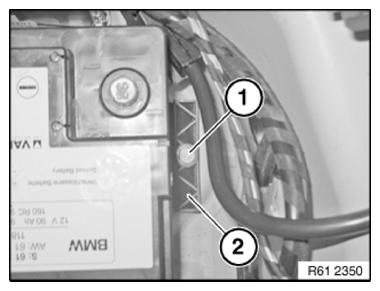

Fig 3: Identifying Battery Holder And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Vehicles with intelligent battery sensor (IBS)

NOTE: If Check Control message is present:

Delete fault memory
