61 14 010 Removing and installing/renewing power distribution box (on battery)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Observe SAFETY INFORMATION for handling vehicle battery.

Necessary preliminary tasks:

Disconnect BATTERY NEGATIVE CABLE

Fold up covers (1). Unscrew nuts (2).

Tightening torque 61 21 2AZ .

Unscrew nut (3).

Tightening torque 61 21 3AZ .

Disconnect plug connection (4).

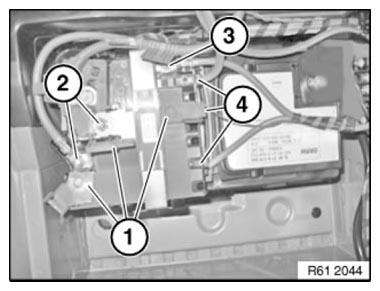

Fig 1: Identifying Power Distribution Box, Plug Connection, Cover And Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Press locking brackets (1) downwards and unclip in direction of arrow.

If necessary, using a screwdriver, expand locking bracket (1) at lower end and clip out.

Remove power distribution box (2) towards top.

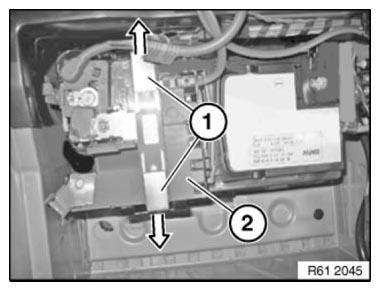

Fig 2: Removing Power Distribution Box

Courtesy of BMW OF NORTH AMERICA, INC.
