61 20 005 Testing battery with battery tester
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Check is not permissible for AGM and lithium ion batteries!
Check does not apply to F-series!
Check does not apply to F-series!
WARNING:
Observe SAFETY INFORMATION
on the 12 V battery.
Necessary preliminary tasks:
Remove luggage compartment floor trim panel. See SPARE WHEEL WELL TRIM PANEL and LUGGAGE COMPARTMENT FLOOR TRIM PANEL .
Procedure:
- Turn off ignition and close doors

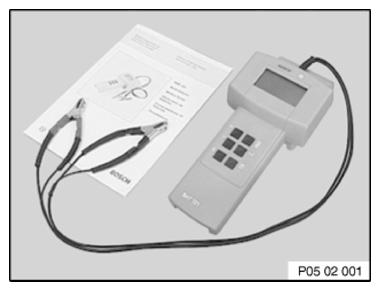

- Connect battery tester directly to battery terminals
- Select Battery test and confirm
- Enter vehicle identification number
- Enter battery data
- Carry out battery test
