61 12 002 Replacing positive battery cable (from battery to luggage compartment cable connector)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Observe SAFETY INFORMATIONS for handling vehicle battery.

Necessary preliminary tasks:

Disconnect NEGATIVE BATTERY CABLE
REMOVE FRONT SPARE WHEEL WELL TRIM PANEL only with F07

If necessary, unlock and disconnect plug connection (1) of safety battery terminal lead.

IMPORTANT: Do not under any circumstances pull/lever off safety battery terminal (1) by force.

Loosen nut (2).

Tightening torque 61 21 1AZ .

Unscrew nut (3).

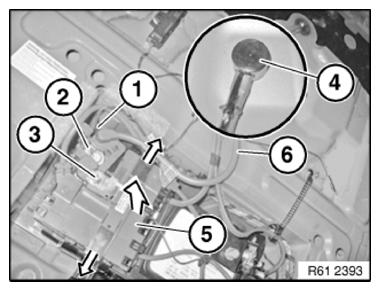

Fig 1: Disconnecting Battery Terminal Lead Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Tightening torque 61 21 2AZ .

Open cap (4) and release nut underneath.

Tightening torque 61 21 4AZ .

Unclip locking brackets from power distribution box (5) in direction of arrow.

Raise power distribution box (5) in direction of arrow and remove positive battery cable (6).
