33 33 111 Replacing all rubber mounts for rear axle support

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

WARNING: Danger of injury!
Failure to comply with the following instructions may result in the vehicle slipping off the lifting platform and critically injuring other persons.
Before lowering/removing the rear axle support, it is essential to place a minimum load of 100 kg in the luggage compartment to prevent the vehicle from toppling/slipping off the vehicle hoist!
When supporting components, make sure that:
  • the vehicle can no longer be raised or lowered
  • the vehicle does not lift off the locating plates on the vehicle hoist.
IMPORTANT: Before lowering/removing rear axle support:
Observe SAFETY INFORMATIONS for raising the vehicle
In order to avoid damage to vehicle hoist, perform weight compensation on vehicle.

Necessary preliminary tasks:

Risk of damage!

It is mandatory to observe the correct press-out and press-in directions. Failure to comply with this requirement will result in damage to the rear axle support!

To ensure that rear axle rubber mounts are securely seated in rear axle support, observe a waiting period of 2 hours after pressing in rubber mounts.

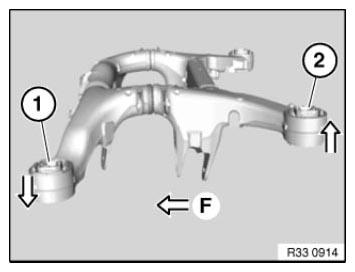

Press-out and press-in directions pictured.

IMPORTANT: For F01/F02 vehicles with N74 engine only:
Install damping inserts in both front rubber mounts.

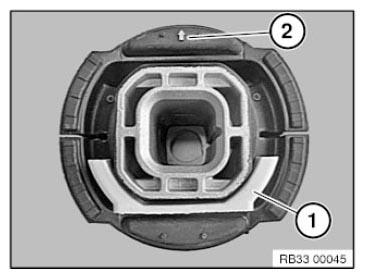

Install damping inserts (1) in the rear gap, opposite the direction arrow (2).
Fig 2: Installing Damping Inserts
G08484463Courtesy of BMW OF NORTH AMERICA, INC.

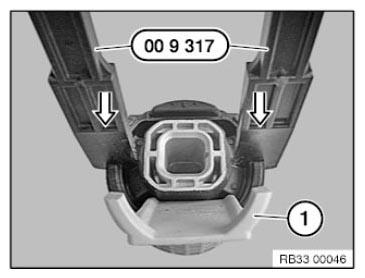

Spread apart rubber mount with special tool 00 9 317 and insert Damping inlay (1) to limit position!

Fig 3: Inserting Damping Inlay
G08484464Courtesy of BMW OF NORTH AMERICA, INC.
NOTE:
  • Removal and installation are described on the front rubber mount.

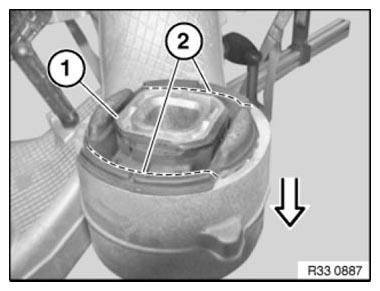

NOTE: Edges (2) break off when rubber mount (1) is pulled out in the direction of arrow.
Fig 4: Pulling Out Rubber Mount
G06889882Courtesy of BMW OF NORTH AMERICA, INC.

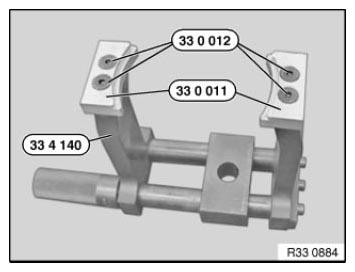

Assemble special tool 33 4 140 in conjunction with 33 0 011 and 33 0 012 .

Fig 5: Assembling Special Tool 33 4 140 In Conjunction With 33 0 011 And 33 0 012
G06851028Courtesy of BMW OF NORTH AMERICA, INC.

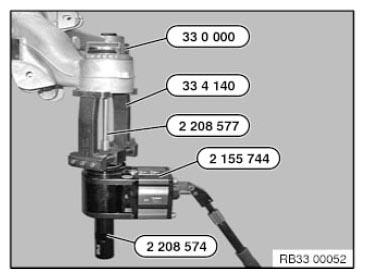

Pull out rubber mounts using special tools 33 0 000 , 33 4 140 , 2 208 577, 2 155 744 and 2 208 574 pull out of the rear axle support.

NOTE: Align special tool 33 0 000 form-fit to the rubber mount.

Make sure special tool 33 4 140 is correctly supported on rear axle support bush.

Fig 6: Pulling Out Rubber Mounts Using Special Tools 33 0 000, 33 4 140
G08484467Courtesy of BMW OF NORTH AMERICA, INC.

Applicable to front rubber mount:

(View of rear axle support from above)

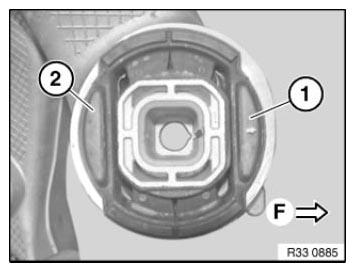

IMPORTANT: Arrow (1) must point on rubber mount (2) in direction of travel.
Fig 7: Identifying Direction Of Travel Marking On Rubber Mount
G06851030Courtesy of BMW OF NORTH AMERICA, INC.

Applicable to rear rubber mount:

(View of rear axle support from below)

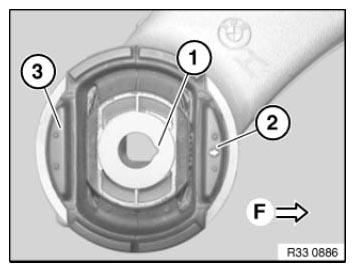

IMPORTANT: Notch (1) and arrow (2) on rubber mount (3) must point in direction of travel.
Fig 8: Identifying Notch And Direction Of Travel Marking On Rubber Mount
G06851031Courtesy of BMW OF NORTH AMERICA, INC.

Coat rubber mount (1) with Circo Light.

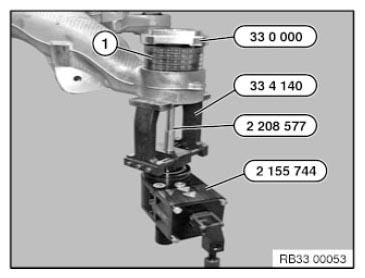

Pull in the rubber mounts (1) to the limit position of the rear axle support using special tools 33 0 000 , 33 4 140 , 2 208 577, 2 208 574 and 2 155 744 .

Fig 9: Pulling Rubber Mounts Using Special Tools 33 0 000, 33 4 140, 2 208 577, 2 208 574 And 2 155 744
G08484470Courtesy of BMW OF NORTH AMERICA, INC.

After installation
