31 12 134 Replacing rubber mount in left or right trailing link

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

31 3 032
33 3 322

IMPORTANT: Rubber mount may only be replaced once!

Necessary preliminary tasks:

Check ball joints of trailing links while installed, and replace trailing link if necessary. See TRAILING LINK (RWD VEHICLE) or TRAILING LINK (AWD VEHICLE) .
Remove trailing link. See TRAILING LINK (RWD VEHICLE) or TRAILING LINK (AWD VEHICLE) .

IMPORTANT: If the trailing link already features an identification mark with a center punch, it is necessary to replace the trailing link.

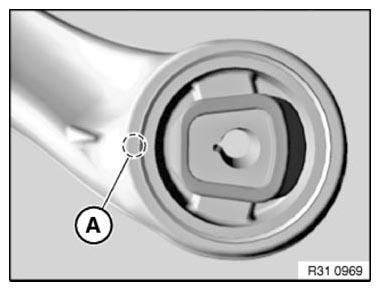

Mark trailing link with a punch mark in area (A).

Fig 1: Identifying Area For Punch Mark On Trailing Link

Courtesy of BMW OF NORTH AMERICA, INC.

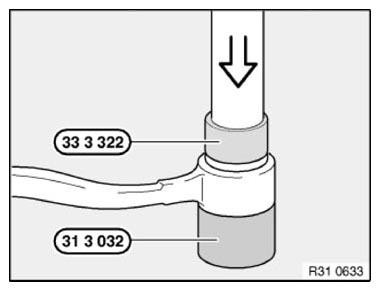

Using a press and special tools 33 3 322 and 31 3 032 , press rubber mount out of tension strut.

NOTE: Special tool 33 3 322 must be exactly flush with rubber mount bush.

Fig 2: Pressing Rubber Mount Out Of Tension Strut

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Keep rubber mount and bush in tension strut clean and free from grease.

Align rubber mount notch with punch mark previously made on trailing link, and then press in.

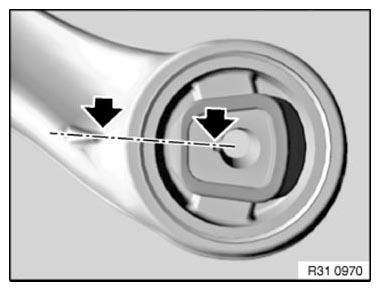

Fig 3: Aligning Rubber Mount Notch With Punch Mark Previously Made On Trailing Link

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Protrusion (A) equally large.

Fig 4: Identifying Protrusion

Courtesy of BMW OF NORTH AMERICA, INC.
