31 11 001 Replacing front axle support (All-Wheel Drive vehicle)
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Danger of injury!
Failure to comply with the following instructions may result in the vehicle slipping off the lifting platform and critically injuring other persons.
When supporting components, make sure that:
Failure to comply with the following instructions may result in the vehicle slipping off the lifting platform and critically injuring other persons.
When supporting components, make sure that:
- the vehicle can no longer be raised or lowered
- the vehicle does not lift off the locating plates on the vehicle hoist.
IMPORTANT:
Before lowering/removing front axle support:
Observe SAFETY INFORMATIONS for raising the vehicle
In order to avoid damage to vehicle hoist, perform weight compensation on vehicle.
Load spring strut domes with sand bags.
Observe SAFETY INFORMATIONS for raising the vehicle
In order to avoid damage to vehicle hoist, perform weight compensation on vehicle.
Load spring strut domes with sand bags.
WARNING:
Secure engine in installation position with special tool to prevent it from falling down. See SECURING ENGINE IN INSTALLATION POSITION (N55)
or SECURING ENGINE IN INSTALLATION POSITION (N63)
.
Necessary preliminary tasks:
- Secure engine in installation position. See SECURING ENGINE IN INSTALLATION POSITION (N55) or SECURING ENGINE IN INSTALLATION POSITION (N63) .
- Lower front axle support. See procedure for VEHICLE WITH ENGINE N55 or VEHICLE WITH ENGINE N63 .
- Remove HYDRAULIC STEERING GEAR .
- Remove BOTH LOWER CONTROL ARMS FROM FRONT AXLE CARRIER .
- Remove BOTH TENSION STRUTS FROM FRONT AXLE CARRIER .
IMPORTANT:
Only F01/F02 N63 all-wheel drive vehicle with Dynamic Drive:

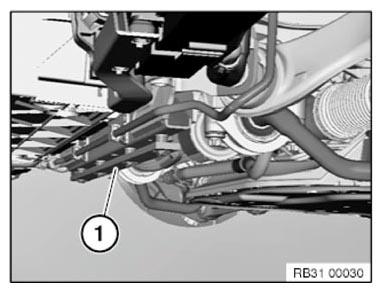

If applicable, convert/replace acoustic strut (1).
If applicable, convert/replace acoustic strut (1).
Installation note
Tightening torque 31 10 3AZ .
Insert BLIND RIVET NUTS for the acoustic strut when installing a new front axle support.
- Remove both engine mounts from front axle support. See procedures for appropriate engine in ENGINE MOUNTING .

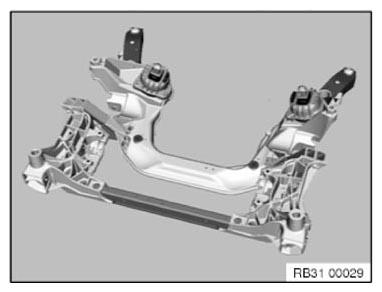

Take down the front axle support and place on a suitable support.
Installation note:
Use previous front axle support as a template for modifying or replacing small parts.
After installation
- Carry out wheel alignment procedure. See ALIGNMENT CHECK WITH VEHICLE LOAD or ALIGNMENT CHECK WITH RIDE HEIGHT MEASUREMENT (WITHOUT VEHICLE LOAD) .
