32 00 601 Adjusting toe-in on front axle

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Camber and toe-in influence each other. Adjust the toe-in first in order to simplify the adjustment procedure.

Version with active steering:

Align steering wheel
Set total steering angle by means of the service function "CARRY OUT INITIAL OPERATION/ADJUSTMENT FOR ACTIVE STEERING " to "zero".
If necessary, secure with steering wheel arrester

Version without active steering:

Remove front UNDERBODY PROTECTION .

Move steering into straight-ahead driving position by means of markings on cap (1) and steering box (2).

Align steering wheel and secure with steering wheel arrester.

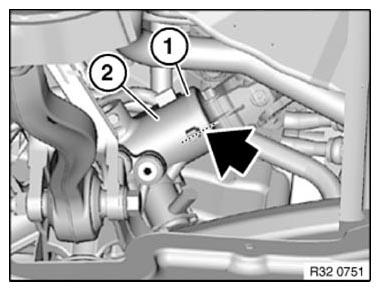

Fig 1: Locating Mark On Cap And Steering Box

Courtesy of BMW OF NORTH AMERICA, INC.

Clean thread on track rod.

Slacken clamping nut (2), gripping track rod end (1) in the process.

Remove clamp (4).

Turn track rod (3) to adjust toe-in to setpoint value.

Version with active steering: Check total steering angle; if necessary, set to "zero".

Check toe values, repeat adjustment if necessary.

Tighten down clamping nut (2).

Tightening torque 32 21 2AZ .

Fit clamp (4).

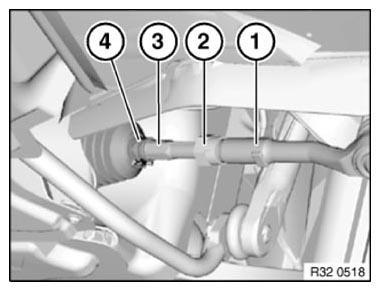

Fig 2: Identifying Track Rod End, Clamp, Track Rod, And Nut

Courtesy of BMW OF NORTH AMERICA, INC.

After installation

Check directional stability of vehicle; if necessary, repeat toe-in adjustment
