63 21 180 Removing and installing/replacing left or right rear light (in side panel)

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD PROTECTION) .

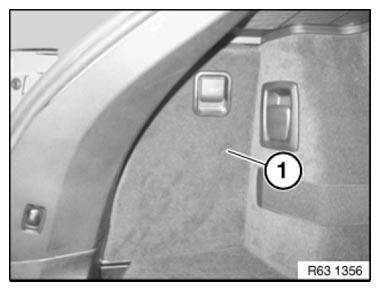

Remove luggage compartment lid (1).

If necessary unfasten plug connection.

Fig 1: Identifying Luggage Compartment Lid

Courtesy of BMW OF NORTH AMERICA, INC.

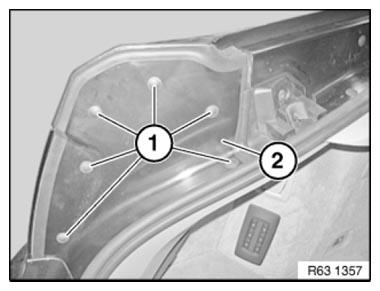

Carefully pull out (1) expanding rivets.

Remove bottom water drain cover (2).

Installation:

Expanding rivets (1) must not be damaged.

Fig 2: Identifying Water Drain Cover And Rivets

Courtesy of BMW OF NORTH AMERICA, INC.

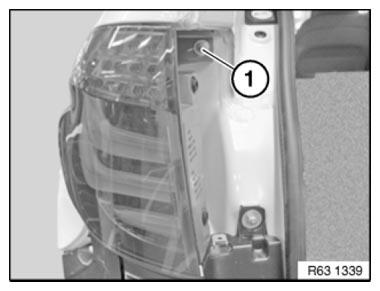

Slacken nut (1).

Tightening torque 63 21 3AZ .

Fig 3: Identifying Rear Light Nut

Courtesy of BMW OF NORTH AMERICA, INC.

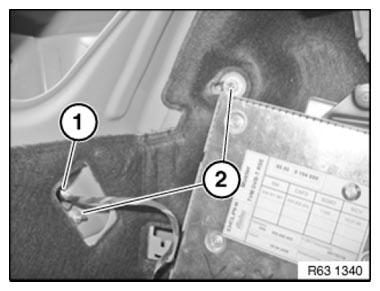

Disconnect plug connection (1).

Unscrew nuts (2).

Tightening torque 63 21 3AZ .

Fig 4: Identifying Plug Connection And Nut

Courtesy of BMW OF NORTH AMERICA, INC.

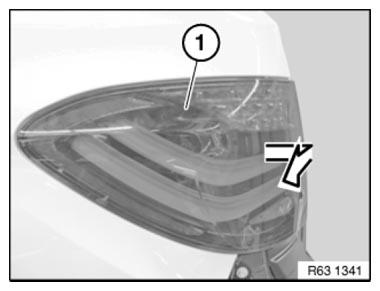

Remove left rear light (1) in direction of arrow.

Fig 5: Removing Left Rear Light

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure sealing frame (1) for tail light (2) is correctly seated.

If necessary, replace SEALING FRAME (1).

Fig 6: Identifying Tail Light And Sealing Frame

Courtesy of BMW OF NORTH AMERICA, INC.
