63 31... Removing and installing/replacing front left or right top door trip panel fibre optic conductor

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

64 1 020

WARNING: Fibre optic conductors are sensitive (risk of damage). Always handle carefully.

Necessary preliminary tasks

Remove FRONT DOOR TRIM PANEL .
Work station with cleaner working surface

Top fibre optic conductor below decorative strip

Use special tool 64 1 020 to unclip fibre optic conductor (2) from door trim panel (1) at the fastening clips (3) with light rotating movement.

Installation:

Make sure fibre optic conductor (1) correctly locks at fastening clips (3).

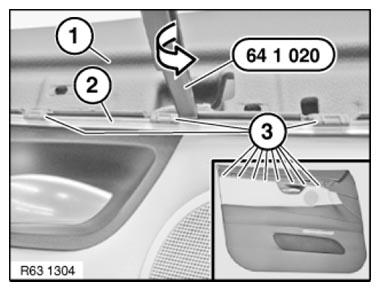

Fig 1: Removing Fibre Optic Conductor From Door Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Pull LED-module (1) out of bracket (2).
Carefully pull LED-module (1) from fibre optic conductor (2).

Installation:

LED-module (1) must lock into position (light distribution).

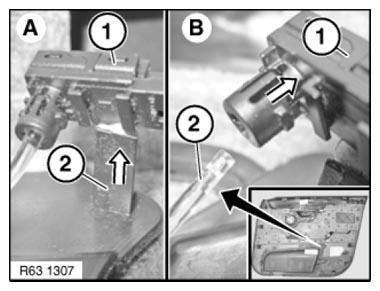

Fig 2: Pulling LED-Module Out Of Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

Feed fibre optic conductor (1) out of door trim panel (2) in direction of arrow and remove.

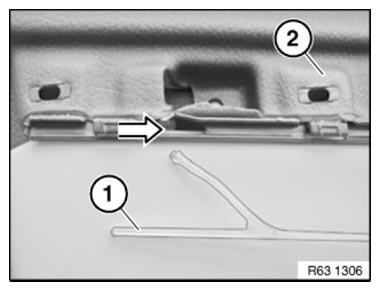

Fig 3: Feeding Fibre Optic Conductor Out Of Door Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Check fibre optic conductor (1) for damage (scratches or cracks), replace if necessary.

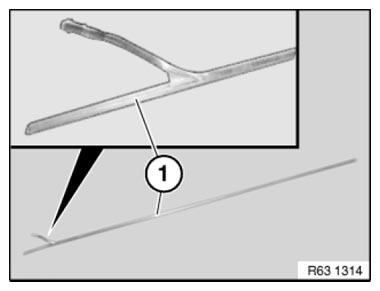

Fig 4: Identifying Fibre Optic Conductor

Courtesy of BMW OF NORTH AMERICA, INC.
