51 41 000 Removing and installing (replacing) front left or right door trim panel

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 321

Necessary preliminary tasks

Remove DECORATIVE STRIP FROM DOOR TRIM PANEL

IMPORTANT: Adhere to the correct sequence without fail, otherwise the door trim panel will break.
Do not under any circumstances pull on map pocket.

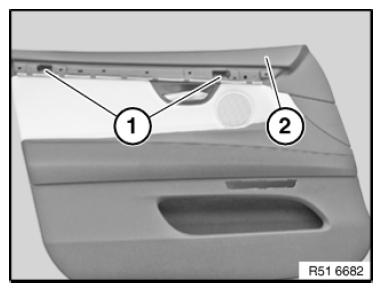

Release screws (1).

Tightening torque 51 41 1AZ .

Fig 1: Identifying Door Trim Panel Screws

G08485988

Courtesy of BMW OF NORTH AMERICA, INC.

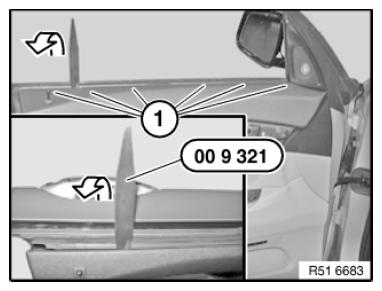

Starting in B-pillar area, unclip shoulder with special tool 00 9 321 from retainers (1).

Fig 2: Removing Shoulder From Retainers Using Special Tool (00 9 321)

G08485989

Courtesy of BMW OF NORTH AMERICA, INC.

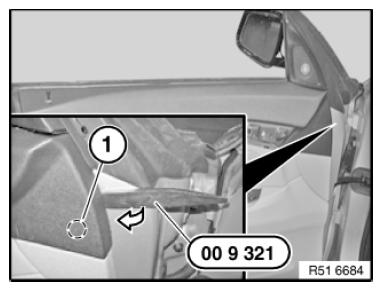

Unclip retainer (1) with special tool 00 9 321 .

Fig 3: Uncliping Retainer Using Special Tool (00 9 321)

G08485990

Courtesy of BMW OF NORTH AMERICA, INC.

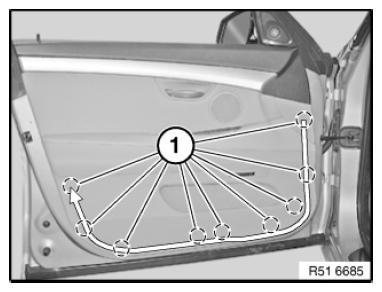

Unclip clips (1) in direction of arrow by gripping with hand.

Fig 4: Identifying Clips Removing Direction

G08485991

Courtesy of BMW OF NORTH AMERICA, INC.

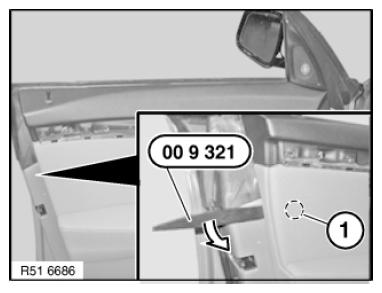

Unclip retainer (1) with special tool 00 9 321 .

Fig 5: Uncliping Retainer Using Special Tool (00 9 321)

G08485992

Courtesy of BMW OF NORTH AMERICA, INC.

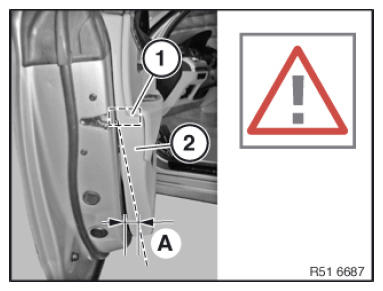

IMPORTANT: Do not lever off door trim panel (1) over dimension (A) from inner door panel.
Door trim panel (2) (risk of damage) in area (1)

A. = 30 mm

Fig 6: Caution For Levering Off Door Trim Panel

G08485993

Courtesy of BMW OF NORTH AMERICA, INC.

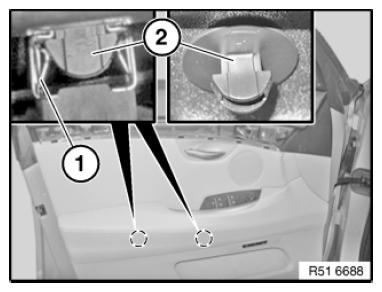

IMPORTANT: Centre retainer (1) twist knob (2) separation only possible by moving.

Fig 7: Identifying Centre Retainer And Knob

G08485994

Courtesy of BMW OF NORTH AMERICA, INC.

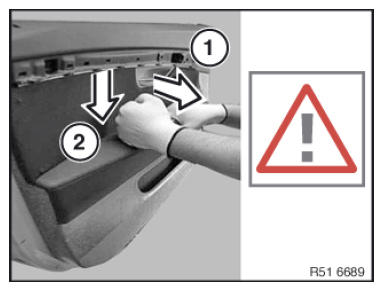

IMPORTANT: Pull door trim panel by handle recess gently in direction (1), gently strike armrest with fist in direction (2) to release door trim panel from inner door panel.

Fig 8: Removing Door Trim Panel From Inner Door Panel

G08485995

Courtesy of BMW OF NORTH AMERICA, INC.

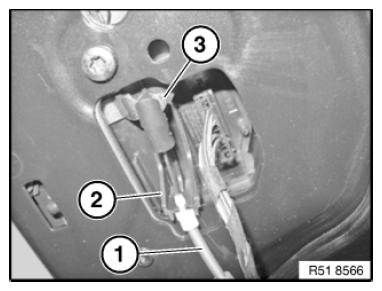

Disengage Bowden cable (1) for release lever first at counterholder (2) and then at door lock (3).

Unlock and disconnect all plug connections, then remove door trim panel.

Fig 9: Identifying Bowden Cable, Counterholder And Door Lock

G08485996

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

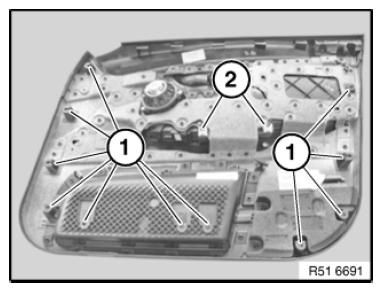

If necessary, replace clips (1), color: grey.

Check center retainer (2) for damage, replace if necessary.

Fig 10: Identifying Centre Retainer And Clips

G08485997

Courtesy of BMW OF NORTH AMERICA, INC.

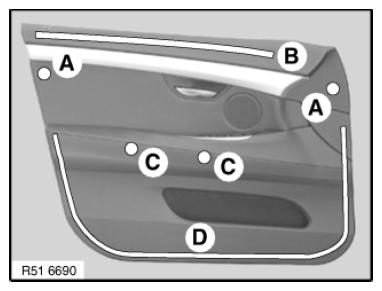

Fit door trim panel, make sure retainers are correctly seated and press down in sequence A - D.

Fig 11: Identifying Door Trim Panel Retainers Fitting Sequence

G08485998

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

After assembling the door trim panel proceed as follows:

Open door window
Lock with ignition key
Check for ease-of-movement on locking knob linkage
If necessary, align linkage
