63 31... Removing and installing/replacing fibre optic conductor of front door trim panel (storage compartment)

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Fibre optic conductors are sensitive (risk of damage). Always handle carefully.

Necessary preliminary tasks

Remove FRONT DOOR TRIM .
Work station with cleaner working surface

Fibre optic conductor at bottom of storage compartment

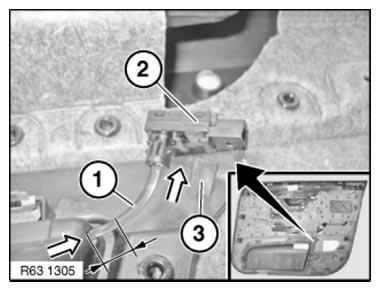

Remove LED module (2) in direction of arrow from bracket (3).

Carefully pull LED module (2) from fibre optic conductor (1).

Pull out fibre optic conductor (1) by about 10 mm in direction of arrow and unclip from the storage compartment side.

Fig 1: Removing LED Module From Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

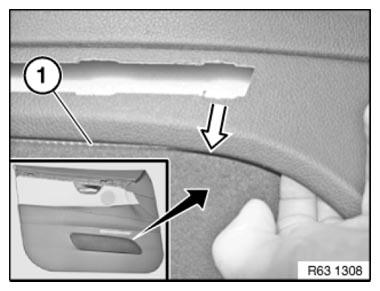

Grasp the end of the fibre optic conductor (1) with finger and unclip in direction of arrow.

Fig 2: Disconnecting Fibre Optic Conductor

Courtesy of BMW OF NORTH AMERICA, INC.

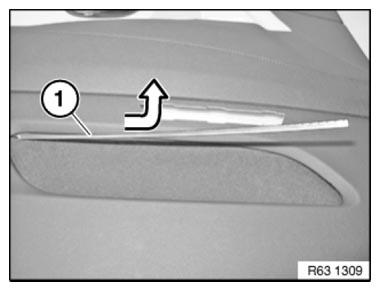

Feed out fibre optic cable (1) in direction of arrow.

Fig 3: Feedind Out Fibre Optic Cable

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

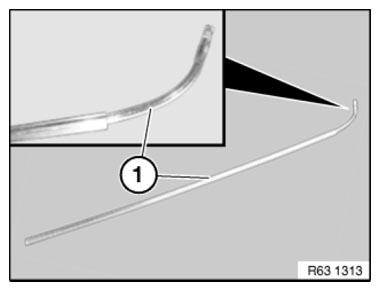

Check fibre optic conductor (1) for damage (scratches or cracks), replace if necessary.

Fig 4: Identifying Fibre Optic Conductor

Courtesy of BMW OF NORTH AMERICA, INC.
