Stamping second vehicle identification number

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Display input:

Select Layout 2 with arrow button.
Press "ENTER" button.

NOTE: With Layout 2 the already entered vehicle identification number is stamped in line 2.

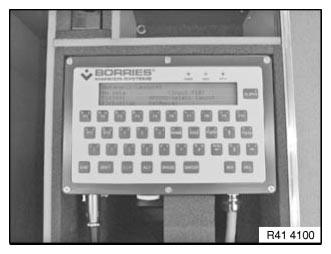

Fig 1: Display - Vehicle Identification Number

Courtesy of BMW OF NORTH AMERICA, INC.

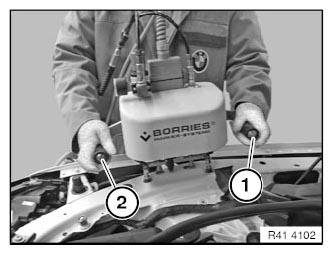

Start stamping operation with pushbutton (2).

After the stamping operation, if necessary adapt ENGINE COMPARTMENT LID SEAL LOCATOR of second vehicle identification number.

Fig 2: Stamping Vehicle Identification Number

Courtesy of BMW OF NORTH AMERICA, INC.

Following layout functions are available:

Layout selection	Vehicle identification number
Layout 1	In line 1
Layout 2	In line 2
Layout 3	Turned through 180° in line 1
Layout 4	Turned through 180° in line 2
Layout 5	Cross through in line 1
Layout 6	Cross through in line 2
