41 34 060 Replacing Outer And Inner Tail Panel Sections: Notes

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Read contents of BODY, GENERAL .

Observe (REPAIR STAGE 2 ) procedure!

STRIP DOWN VEHICLE

Following new body parts are required (refer to Electronic Parts Catalogue):

(1) Rear trim panel, outer skin
(2) Rear trim panel, inner

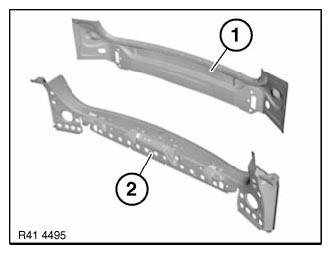

Fig 1: Identifying Inner And Outer Skin Rear Trim Panel
Courtesy of BMW OF NORTH AMERICA, INC.

Following CONSUMABLES are required:

Material	Quantity
Adhesive K5b	1
Blind rivets N3	72
Punch rivets N4	26
EMC screws	18
Cleaning agent R1	1
Sealant D1
Cavity wax remover
