41 62 540 Remove / Install / Replace Both Tailgate Hinges (Tailgate Removed)
WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.
Read contents of BODY, GENERAL .
Operation is described on the left side. Right side identical.

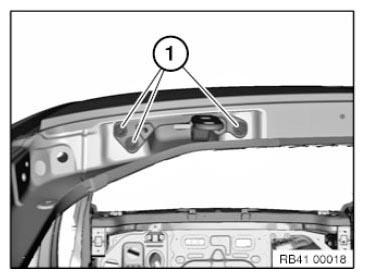

Release screws (1).
Remove hinge.
Installation note:
Tightening torque 41 62 2AZ .
Adjust rear lid on the basis of the 41 00... BODY GAP DIMENSIONS .
